Plano-Convex Lens

Share:
Product Details

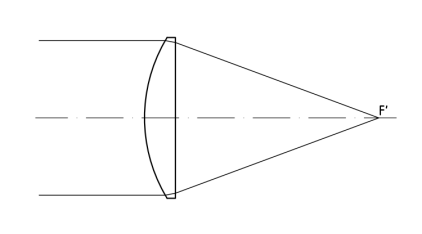

Plano-Convex Lenses are Optical Lenses with a positive focal length. PCX Lenses have one plane surface and one convex surface. For maximum efficiency, the second plano (flat) surface should face the desired focal plane.

Opticreate offers AR coated and Uncoated lenses, Anti-reflection coatings range from the Ultraviolet (UV) to the Infrared (IR), Germanium (Ge), Silicon (Si), or Zinc Selenide (ZnSe) substrates are ideal for Infrared (IR) applications and Fused Silica are used for UV applications.



MaterialBK7, Fused silica, Si,Ge,CaF2,ZnSe ect.
Design wavelength440~660nm
Diameter tolerance+0.0/-0.05mm(D50mm)
DiameterD2-D300mm
Focal length tolerance±2%
Centration≤0.01mm((General)<0.005mm(High Precision)
Power<1.5λ@633nm(General),<λ/4@633nm(High Precision)
Irregularityλ/4 @ 632.8nm(General)λ/10@632.8nm(High Precision)
Surface Quality40/20(General)10/5(High Precision)
Bevel0.25 mm × 45°
CoatingAR coating(Could be customized)
