CaF2 Window & Lens

Share:
Product Details

Calcium Fluoride crystal shows good optical and thermo-mechanical properties, can be used for optical windows, lenses, prisms within a wide range from 130nm to 9μm. It has optical properties of isotropy, low absorption and low refractive index, which made CaF2 gain the unique advantages in the application of high power lasers.

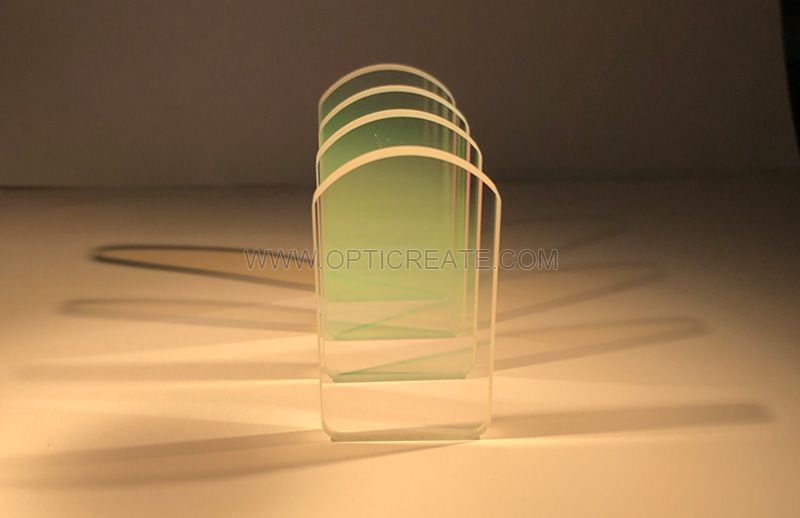

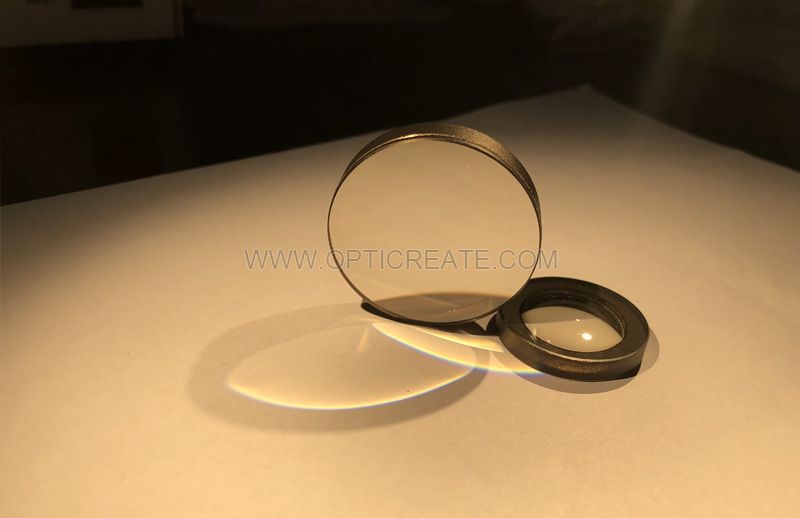

Opticreate provides CaF2 viewport Windows for Infrared thermography at 8μm to 10μm and also manufactures high precision CaF2 lens. Also do AR coating according to customer’s requirements.

MaterialCaF2
Diameter tolerance+0.0/-0.05mm
DiameterD2-D300mm
Focal length tolerance±2%(for lens)
Centration≤0.01mm(high precision 0.005mm)
Power
Irregularityλ/4
Surface Quality20-10
Bevel0.25 mm × 45°
CoatingAR Coating
