Roof Prism

Share:
Product Details

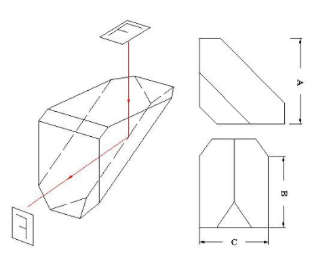

Roof prisms revert and invert the image as well as bend the line of sight through a 90°angle. Ideal for use in spotting scopes, and any optical instrument where it is desirable to take an inverted image from an objective, turn it right side up, and bend it through a 90° angle in order to maintain the correct visual orientation.

Roof prisms

MaterialBK7
Dimension tolerance+0.0/-0.05mm
Flatnessλ/4 at 632.8 nm
Angle tolerance3’
Surface quality40-20
Bevel0.25 mm × 45°
CoatingAR Coating,HR Coating(Could be customized)
