Plano-Concave Lens

Share:
Product Details

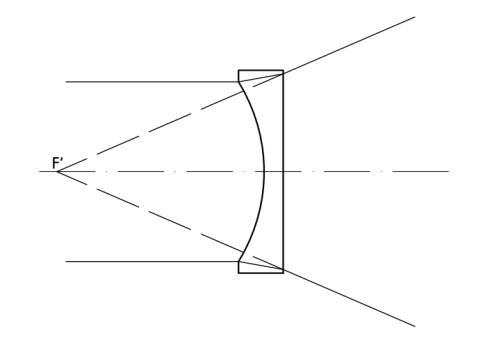

Plano-Concave Lenses, which have one concave surface, are Optical Lenses with negative focal lengths. PCV Lenses should be oriented with the plano, or flat, surface towards the desired focal plane. Plano-Concave Lenses are ideal for beam expansion, light projection, or for expanding an optical system’s focal length.

Opticreate offers AR coated and Uncoated lenses, Anti-reflection coatings range from the Ultraviolet (UV) to the Infrared (IR), Germanium (Ge), Silicon (Si), or Zinc Selenide (ZnSe) substrates are ideal for Infrared (IR) applications and Fused Silica are used for UV applications.


MaterialBK7, Fused silica, Si,Ge,CaF2,ZnSe ect.
Design wavelength440~660nm
Diameter tolerance+0.0/-0.05mm(D50mm)
DiameterD2-D300mm
Focal length tolerance±2%
Centration≤0.01mm((General)<0.005mm(High Precision)
Power<1.5λ@633nm(General),<λ/4@633nm(High Precision)
Irregularityλ/4 @ 632.8nm(General)λ/10@632.8nm(High Precision)
Surface Quality40/20(General)10/5(High Precision)
Bevel0.25 mm × 45°
CoatingAR coating, HR coating(Could be customized)
