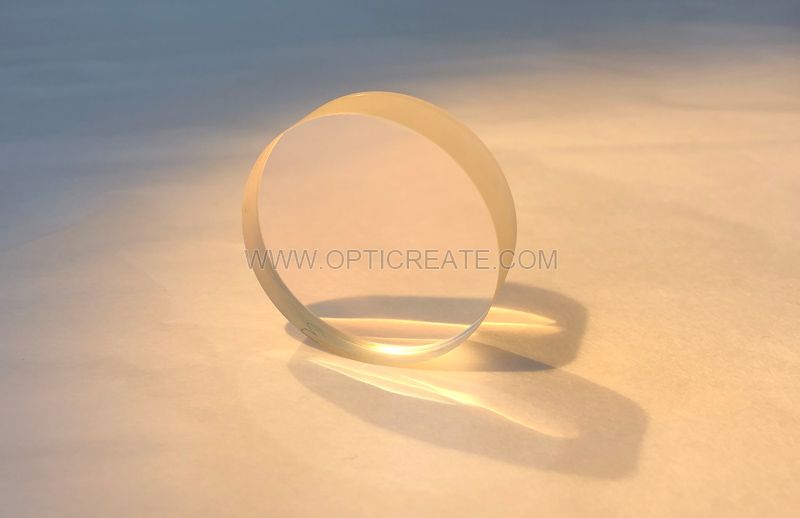

Extension technology production infrared optical lens is applied to the fire alarm, navigational aids, night vision patrol, the product having a compact structure, small volume, light weight and other characteristics;
Product Case:
Near infrared lens (SWIR)
Infrared light machine system
model | Near infrared 50mm |
Optical parameter |
Focal length (mm) | 50 (other optional) |
F/# | 1.2 |
Field of view | 18.2° × 13.7° |
Working band | 0.9 to 1.3 μm |
Optional detector |
Detector type | Focal plane array |
Pixel | 648×480 |
Cell size | 25×25μm |
Physical characteristics |
Focusing range | 335±20nm |
Focusing mode | Manual |
Dimensions | Φ60×89 |
Interface Type | Threaded interface |
weight |
|
Environmental parameters |
Operating temperature | -40°C~+60°C |
storage temperature | -40°C~+60°C |
model | SS05014 |
focal length | 50mm |
Work F/# | 1.4 |
Working band | 0.9 to 1.3 μm |
Image size (diagonal) | 12.8mm |
Field of view (diagonal) | 14.6° |
distortion | <0.5% |
Minimum focus distance | 0.5m |
Back distance |
|
Back intercept |
|
Connection size |
|
Front/rear effective diameter |
|
MOUNT | C-MOUNT |
Exit distance |
|
Operating temperature | -10°C~+45°C |
storage temperature | -40°C~+60°C |
model | SS02514 |
focal length | 25mm |
Work F/# | 1.4 |
Working band | 0.9 to 1.3 μm |
Image size (diagonal) | 12.8mm |
Field of view (diagonal) | 28.7° |
distortion | <1.2% |
Minimum focus distance | 0.3m |
Back distance |
|
Back intercept |
|
Connection size |
|
Front/rear effective diameter |
|
MOUNT | C-MOUNT |
Exit distance |
|
Operating temperature | -10°C to +45°C |
storage temperature | -40°C to +60°C |
model | SS03514 |
focal length | 35mm |
Work F/# | 1.4 |
Working band | 0.9 to 1.3 μm |
Image size (diagonal) | 12.8mm |
Field of view (diagonal) | 20.7° |
distortion | <0.5% |
Minimum focus distance | 0.3m |
Back distance |
|
Back intercept |
|
Connection size |
|
Front/rear effective diameter |
|
MOUNT | C-MOUNT |
Exit distance |
|
Operating temperature | -10°C to +45°C |
storage temperature | -40°C to +60°C |
Medium wave cooling dual field lens
model | MD300/0752555-E |
Optical parameter |
Focal length (mm) | 300/75 (180/60, 240/60...) |
F/# | 2.2 (2.5/3/4 optional) |
Field of view | 1.8°×1.5°~7.3°×5.9° |
Working band | 3.7 to 4.8 μm |
Optional detector |
Detector type | Refrigerated focal plane array |
Pixel | 320×256 |
Cell size | 30×30μm |
Physical characteristics |
Focusing range | 50m~∞/30m~∞ |
Focusing mode | electric |
Field of view switching | Hub zoom |
Dimensions | 260×188×140mm |
Interface Type | Flange interface |
Environmental parameters |
Operating temperature | -20 ° C ~ +60 ° C |
(-40°C~+60°C optional) |
Medium wave cooling multi-field lens
model | MZ900/604089-E/MZ1200/604089-E |
Optical parameter |
Focal length (mm) | 60 to 900 mm (60 to 1200 mm) |
F/# | 4.0 |
Field of view | 0.6°×0.5°~9.1°×7.3° |
Working band | 3.7 to 4.8 μm |
Optional detector |
Detector type | Refrigerated focal plane array |
Pixel | 640×512/320×256 |
Cell size | 15×15/30×30μm |
Physical characteristics |
Focusing range | 50m~∞ |
Focusing mode | electric |
Field of view switching | Straight line zoom |
Dimensions | 460×325×230mm |
Interface Type | Flange interface |
Environmental parameters |
Operating temperature | -20 ° C ~ +60 ° C |
( -40 ° C ~ +60 ° C optional) |
Long wave multi-field lens

model | LZ120/0201088-E |
Optical parameter |
Focal length (mm) | 20~120 |
F/# | 1.0 |
Field of view | 5.2°×3.9°~30.4°×23.1° |
Working band | 8~12μm |
Optional detector |
Detector type | Uncooled focal plane array |
Pixel | 640×480/384×288/320×240 |
Cell size | 17×17/25×25/38×38μm |
Physical characteristics |
Focusing range | 50m~∞/15m~∞ |
Focusing mode | Electric / manual |
Field of view switching | Straight line zoom |
Dimensions | Φ130×270 |
Interface Type | Thread/flange interface |
Environmental parameters |
Operating temperature | -20 ° C ~ +60 ° C |
(-40°C to +60°C optional ) |
model | Long wave refrigeration series |
Optical parameter |
Focal length (mm) | 50/100/137/150 |
F/# | 2.0/4.0 |
Field of view | ----- |
Working band | 7.7 to 9.5 μm |
Optional detector |
Detector type | Refrigerated focal plane array |
Pixel | 320×256 |
Cell size | 30×30μm |
Physical characteristics |
Focusing range | 30m ~ ∞ |
Focusing mode | Electric / manual |
Field of view switching | ----- |
Back distance |
|
Dimensions | ----- |
Interface Type | Thread/flange interface |
weight |
|
Environmental parameters |
Operating temperature | -40°C to +60°C |
storage temperature | -40°C to +60°C |
Optical parameter |
Focal length (mm) | 150mm/35mm |
F/# | 0.96/0.9 |
Field of view | 3.7°×2.7° /15.6 °×11.7° |
Working band | 8~12μm |
Optional detector |
Detector type | Uncooled focal plane array |
Pixel | 384×288 |
Cell size | 25×25μm |
Physical characteristics |
Focusing range | 40m ~ ∞ / 3m ~ ∞ |
Focusing mode | electric |
Field of view switching | Rotating hub |
Back distance |
|
Dimensions |
|
Interface Type |
|
weight |
|
Environmental parameters |
Operating temperature | -40°C to +60°C |
storage temperature | -40°C to +60°C |
model | LS07509/08 Series |
Optical parameter |
Focal length (mm) | 75mm |
F/# | 0.9/0.8 |
Field of view | 7.3°×5.5° /10.2 °×7.7° |
Working band | 8~12μm |
Optional detector |
Detector type | Uncooled focal plane array |
Pixel | 384×288 |
Cell size | 25μm × 25μm / 35μm × 35μm |
Physical characteristics |
Focusing range | 5m ~ ∞ |
Focusing mode | Electric / manual |
Back distance |
|
Dimensions |
|
Interface Type |
|
weight |
|
Environmental parameters |
Operating temperature | -40°C to +60°C |
storage temperature | -40°C to +60°C |
