The UV optical lens produced by Optical Technology can clearly detect non-visible images such as arcs. Mainly used to detect aircraft tires, substations and other fields.
The UV optical lens produced by Optical Technology can clearly detect non-visible images such as arcs. Mainly used to detect aircraft tires, substations and other fields.

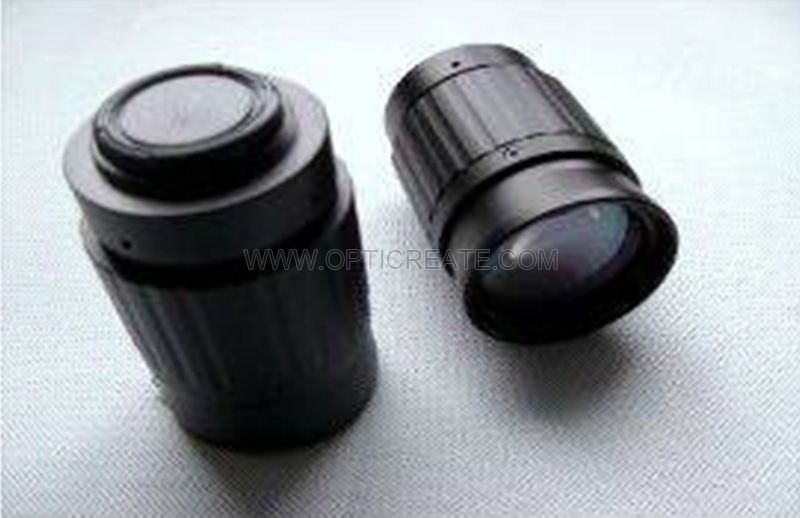

UV Lens System
| Product model: UV 50mm | ||
| project | parameter | data |
| Optical parameter | Focal length ( mm ) | 50 ( 75/100/130... ) |
| F/# | 3.0 | |
| Field of view | 7.4°×5.5° | |
| Working band | 0.25 to 0.3/0.3 to 0.4 μm | |
| Optional detector | Detector type | Focal plane array |
| Pixel | 1392×1040/768×484 | |
| Cell size | 4.65×4.65/11.6×13.6μm | |
| Physical characteristics | Focusing range | 10m ~ ∞ |
| Focusing mode | Manual | |
| Field of view switching | - | |
| Dimensions | Φ61×85 | |
| Interface Type | Threaded interface | |
| Environmental parameters | Operating temperature | -20 ° C ~ +60 ° C |
| ( -40 ° C ~ +60 ° C optional) | ||
