Optical Technology produces lens lenses for the laser industry, including field mirrors, beam expanders, laser ranging and lighting systems, covering all bands of the laser industry, while providing customers with specialized and personalized solutions.
Optical Technology produces lens lenses for the laser industry, including field mirrors, beam expanders, laser ranging and lighting systems, covering all bands of the laser industry, while providing customers with specialized and personalized solutions.
Product Case:
Laser optomechanical system

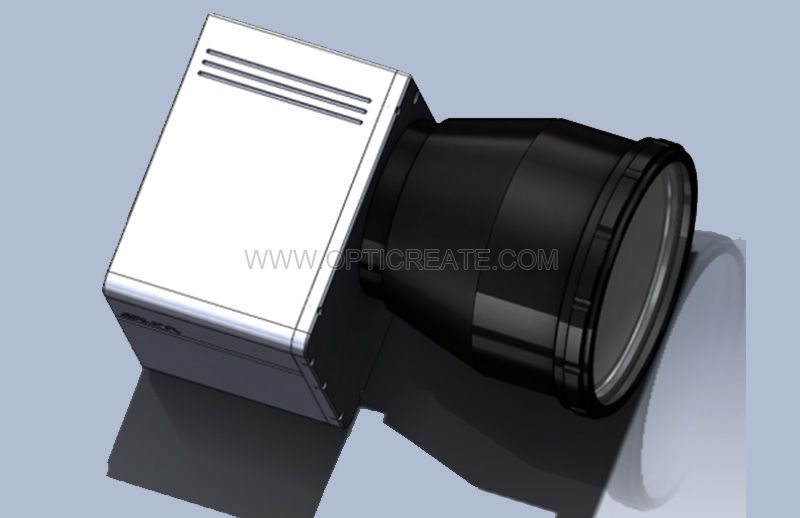

| Product model: 210 scanning field mirror | |
| parameter | index |
| focal length | 210nm |
| Scanning field of view | 130mm × 130mm |
| Maximum scanning angle | ± 17.73 ° |
| Beam diameter | 14mm |
| Laser wavelength | 1064nm |
| Spot diameter | 0.03mm |
| M1 | 16.42mm |
| M2 | 35mm |
| Product model: 1X-8X beam expander | |
| parameter | index |
| Laser wavelength | 1030nm to 1080nm ( single wavelength ) |
| Beam expansion ratio | 1X-8X |
| System laser damage threshold | 1mW/cm 2 |
| Inlet diameter | 9.0mm ( 1X ) ~ 4.0mm ( 8X ) |
| Incident beam stability | ≤1mrad |
| Transmission rate | ≥97% |
| interface | M30×1-6g |
| size | Φ58mm×162.6mm |
| weight | ≤450g |
| Product model: 2X-10X beam expander | |
| parameter | index |
| Laser wavelength | 1030nm to 1080nm ( single wavelength ) |
| Beam expansion ratio | 2X-10X |
| System laser damage threshold | 1mW/cm 2 |
| Inlet diameter | 8.0mm ( 2X ) ~ 3.0mm ( 10X ) |
| Incident beam stability | ≤1mrad |
| Transmission rate | ≥96% |
| interface | M30×1-6g |
| size | Φ42mm×159mm |
| weight | ≤250g |
| CM402 laser rangefinder | |
| parameter | index |
| Working wavelength | 1060nm / 1570nm optional |
| Working range | In the 1060nm band, the natural target is 200m to 17km ; in the 1570nm band, the natural target is 200m to 20km . |
| Ranging accuracy | ±1m |
| Quasi-measurement rate | ≥98% |
| working frequency | 0.2Hz , emergency 1Hz continuous operation for 60s |
| Power supply | DC 24V |
| Operating temperature | -40°C to +60°C |
| volume | 72mm × 52mm × 160mm |
| weight | ≤800g |
| Model: Laser Lighting System JSF1064-M/JSF1550-M | ||
| project | parameter | index |
| Optical parameter | light source | 1064nm/1550nm |
| Luminous area | Φ0.1 mm | |
| Launch angle | 10° | |
| JG power | ≤3W | |
| Focusing range | 0 ° ~ 18 ° | |
| Physical characteristics | Dimensions | Φ20 × 31mm |
| Interface Type | Threaded interface | |
| Environmental parameters | Operating temperature | +10 °C ~ +60 °C |
| Product model: laser lens | ||
| project | parameter | index |
| Optical parameter | Focal length ( mm ) | 150 ( 205/300/400... can be customized) |
| Inlet diameter | 50 | |
| Field of view | 0.15° | |
| JG power | ≤4kW | |
| Working band | 1.070um | |
| Physical characteristics | Dimensions | Φ 72mm × 38mm |
| Interface Type | Threaded interface | |
| Environmental parameters | Operating temperature | +10 °C to +60 °C |
